Automotive 2 Way Rocker Switch , Single Narrow 3 Position Rocker Switch

Product Categories

YUEQING CHIMAI ELECTRONIC CO.LTD

Contact Now

Automotive 2 Way Rocker Switch , Single Narrow 3 Position Rocker Switch

Name: Automotive 2 Way Rocker Switch Single Narrow 3 Position Rocker Switch
Brand: CHIMAI
Price: 1 USD

Brand Name : CHIMAI

Model Number : KCD4

Certification : CE,ROSH ,TUV

Place of Origin : CHINA

MOQ : 100PCS

Price : negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100k/pcs/month

Delivery Time : 7 work days

Packaging Details : plastic bag

Material : pa66

Waterproof : no waterproof

Color : red

Function : on off

Terminal : 6 pins

Current : 16A

Contact Now

2 Pole Push Button Rocker Switch Red Green Mix Color Switches

Product Description

Kcd Rocker switches are widely used in household appliance,electric force,telecommunications,machine tool,vessel,textile ,printing, mining machine, Mustic Instrument,ect.

Item :Rocker Switches
Housing Material: PA66
Button Material :PC
Rating :16A 250VAC / 10A 125VAC

Ambient Temperature: -10ºC~+125ºC
Operating Temperature :-25ºC~+125 ºC
Contact Resistance :<50MΩ
Insulation Resistance :>=10000 MΩ
Electrical Life: >=50000 Cycles
Mechanical Life: >=10000 Cycles
Ways And Pins :1 Way and 3 Pins
Contacts: Brass / Silver
Terminals & Mid pins :Brass
PACKAGING& DELIVERY TIME
PACKAGING: 50PCS per plastic bag
Delivery time: 7 DAYS after receipt.

Model NO	KCD3-201
Item	Rocker Switches
Rating	15A/30A 250VAC 16A 250VAC 10A 250VAC/15A 125VAC 10A 250VAC
Contact Resistance	<= 50mΩ
Insulation Resistance	>= 100mΩ
Dielectirc Intensity	>= 1500 VAC/min
Life	>=10000 Cycles
Terminals	copper terminals

Product Tags:

push rocker switch

lamp rocker switch

Wholesale Automotive 2 Way Rocker Switch , Single Narrow 3 Position Rocker Switch from china suppliers

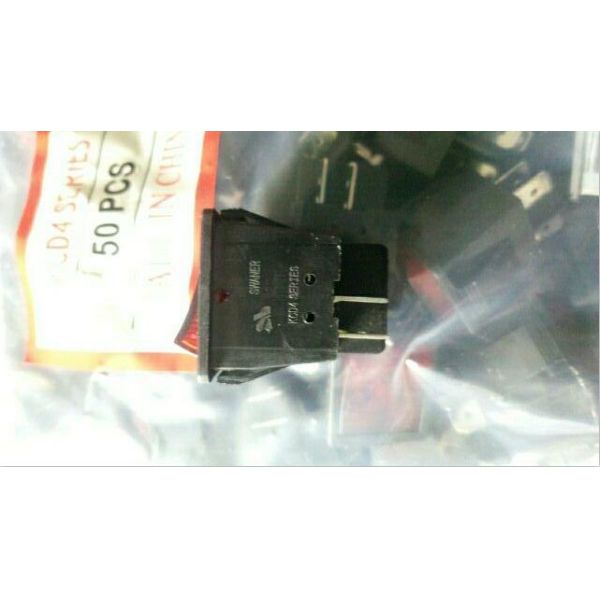

Automotive 2 Way Rocker Switch , Single Narrow 3 Position Rocker Switch Images
